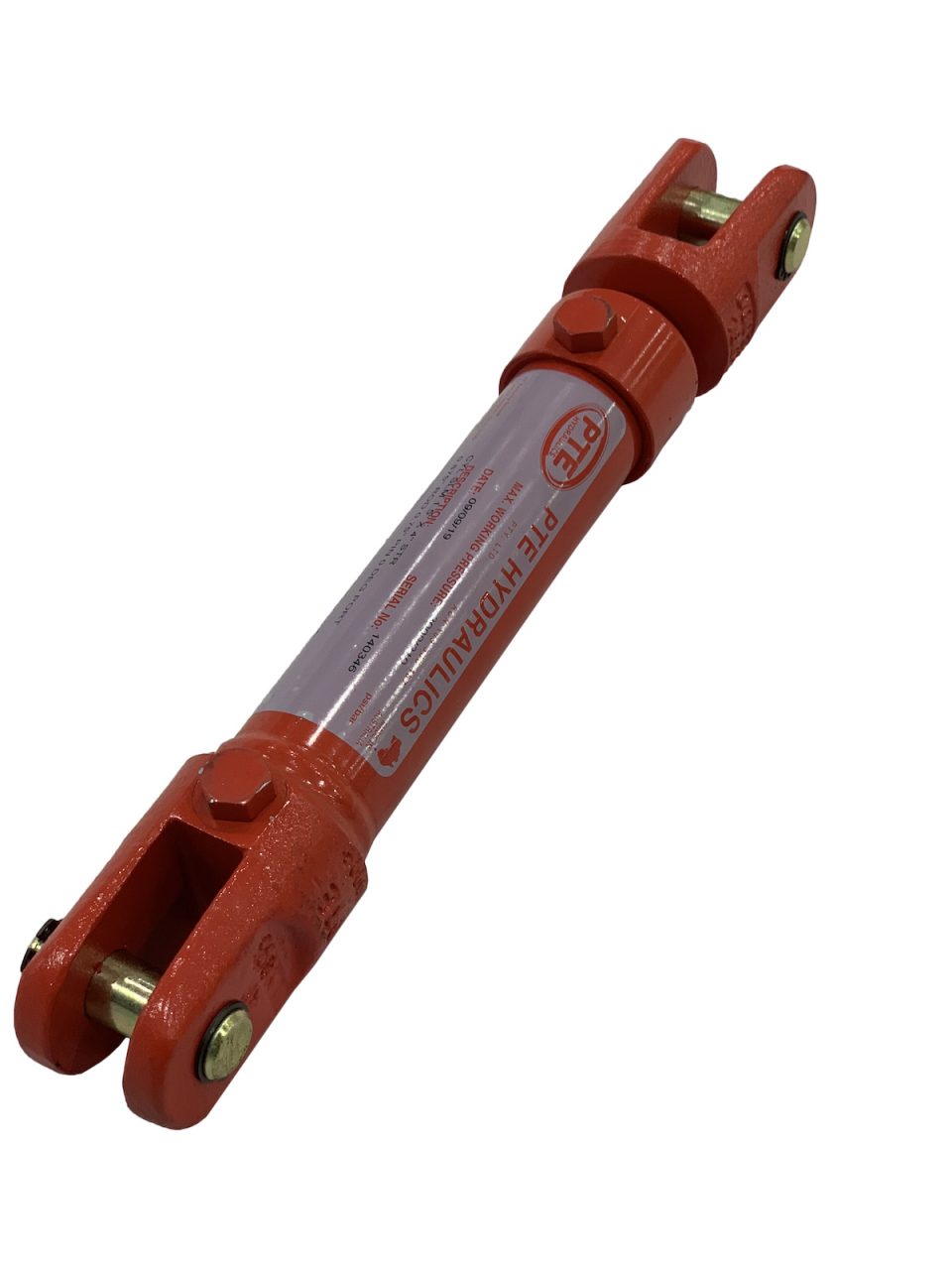

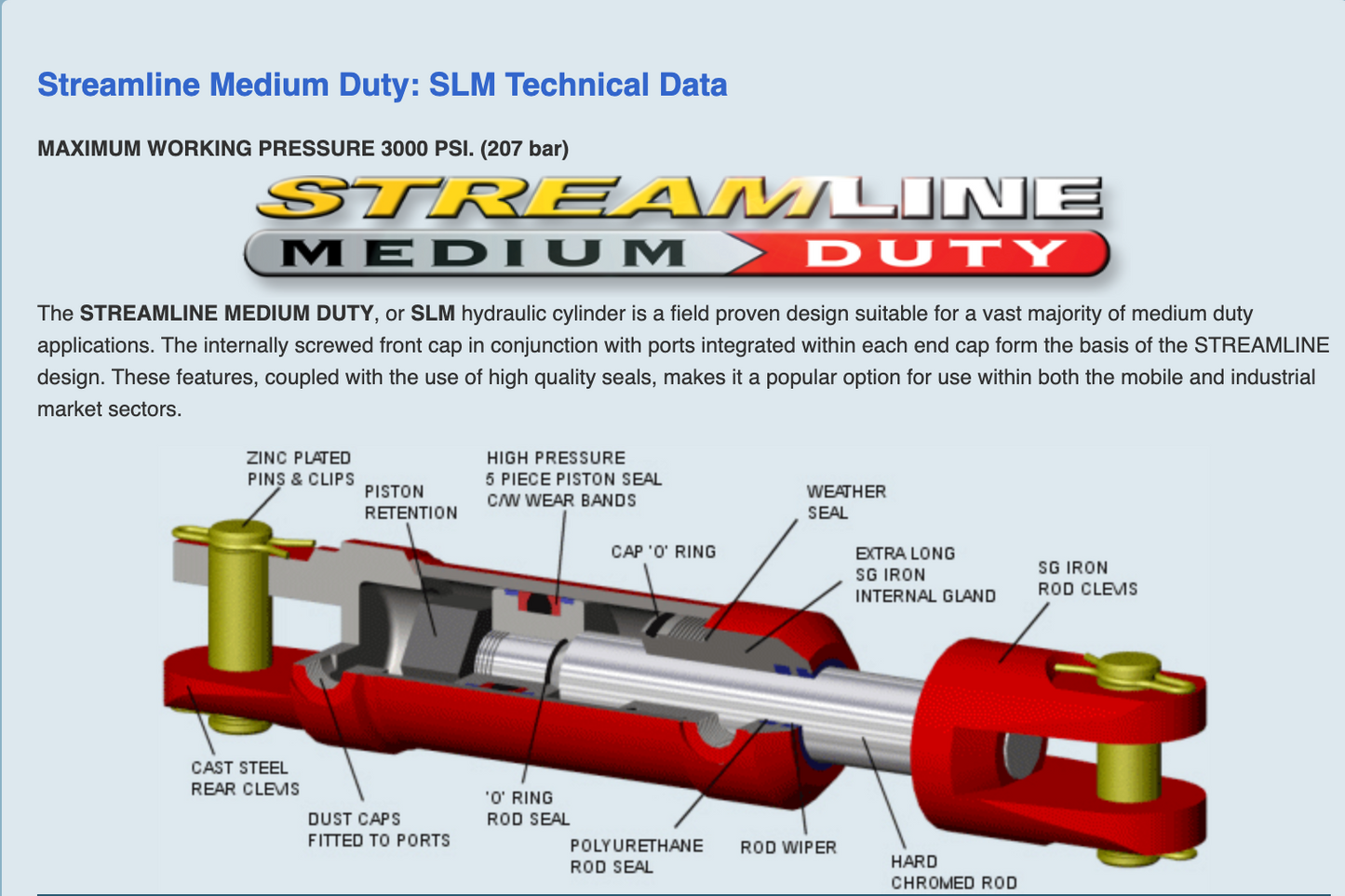

The STREAMLINE MEDIUM DUTY, or SLM hydraulic cylinder is a field proven design suitable for a vast majority of medium duty applications. The internally screwed front cap in conjunction with ports integrated within each end cap form the basis of the STREAMLINE design. These features, coupled with the use of high quality seals, make it a popular option for use within both the mobile and industrial markets.
These cylinders are very popular on car carrier truck trailers as they are a of a slim design compared to most
Maximum working pressure = 207 bar (3000 psi)

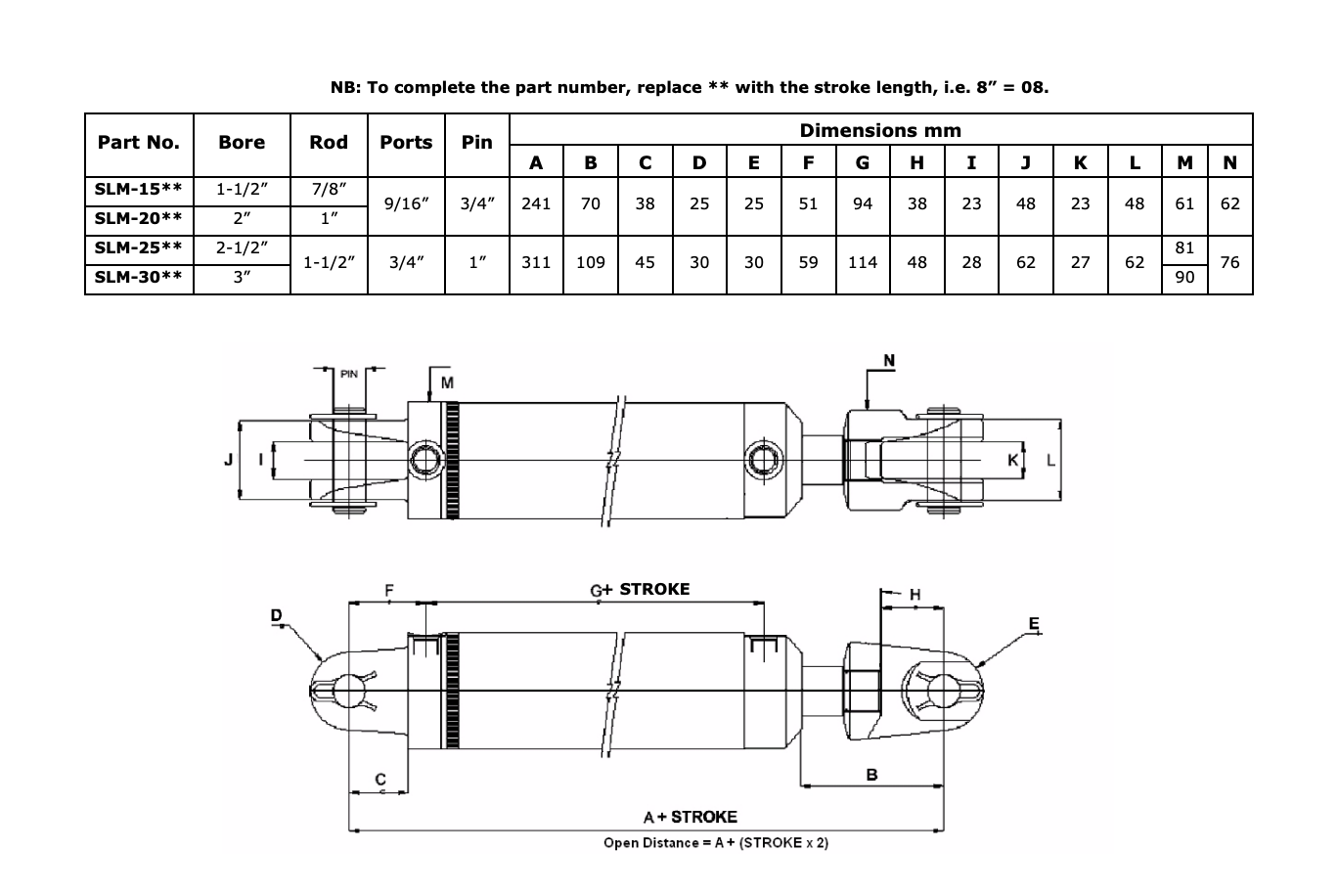

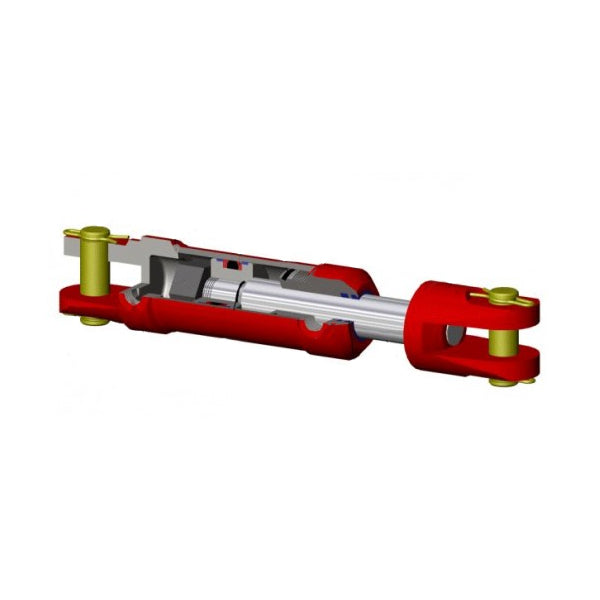

Order Example: If your cylinder part code reads SLM-2524, select 2.5" Barrel and 24" Stroke.
If you are experiencing any issues or are unsure email: sales.hydraulicpartsonline@gmail.com
