Log Splitter Pumps

Log Splitter Control Valve – Spring Center / Hydraulic Kick-Off

This high-quality control valve is specifically designed for log splitters, offering High - Low flow capacity and user-friendly functionality. With a spring-to-center and hydraulic kick-off design, this valve ensures smooth and efficient operation during both splitting and retraction cycles.

Key Features:

Spring Center / Hydraulic Kick-Off:

Splitting Cycle: Depress the lever to operate the ram. Release the lever to return it to the center, halting cylinder movement.

Retracting Cycle: Shift the lever to the retract position to engage the detent function. The lever remains engaged until the cylinder fully retracts, at which point it automatically "kicks off," resetting for the next log.

Adjustable Relief Valve:

Factory preset to 2250 PSI (adjustable).

Kick-off pressure preset to 800 PSI (non-adjustable).

Durable Construction:

High and Low flow function:

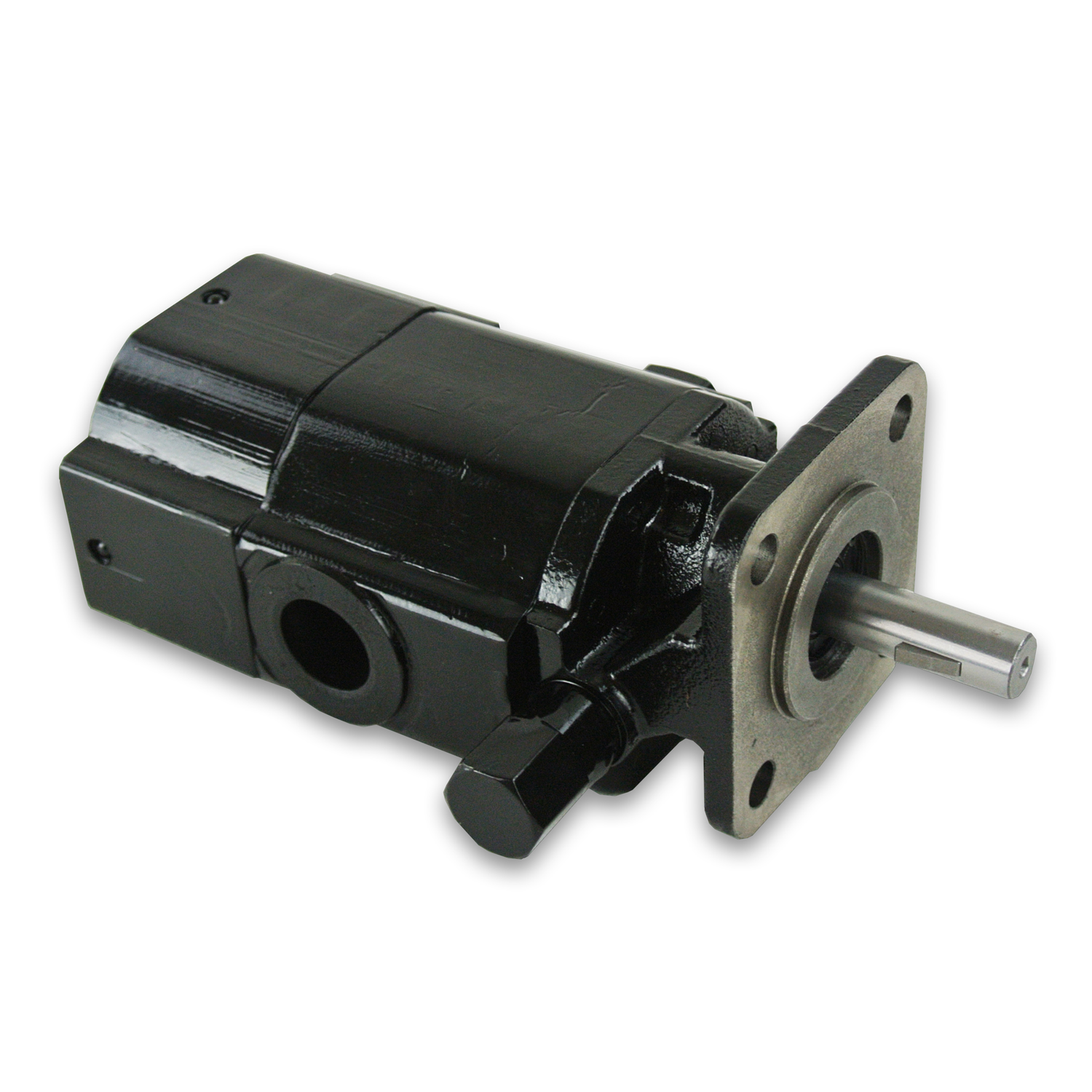

The pump delivers high flow to ensure the extend and retract speeds are kept as fast as possible, Low flow high pressure kicks in when the cylinder is in the splitting process to ensure maximum tonnage is met without bogging down the drive engine

Made from case-hardened steel with NBR (Buna-N®) O-rings for longevity and durability.

Compact monoblock design for robust performance and easy installation.

Flexible Installation:

The lever handle can be rotated 180° for better alignment and operational convenience.

Specifications:

Max Working Pressure: 3265 PSI

Spool Type: Cylinder with lever action

Built-in Relief Valve: Adjustable (preset to 2250 PSI)

Port Connections:

INLET: 3/4’’ hose tail (26&39 LPM) /  1”  hose tail (45&68 LPM)

OUTLET: 1/2" BSPP (26&39 LPM) / 3/4“ BSPP (45&68 LPM)

*Flow Rates are at 3000RPM

This valve is widely used in log splitters and is often interchangeable with similar models. Its thoughtful design and high-quality construction make it an excellent choice for ensuring efficient and reliable log splitting operations.
