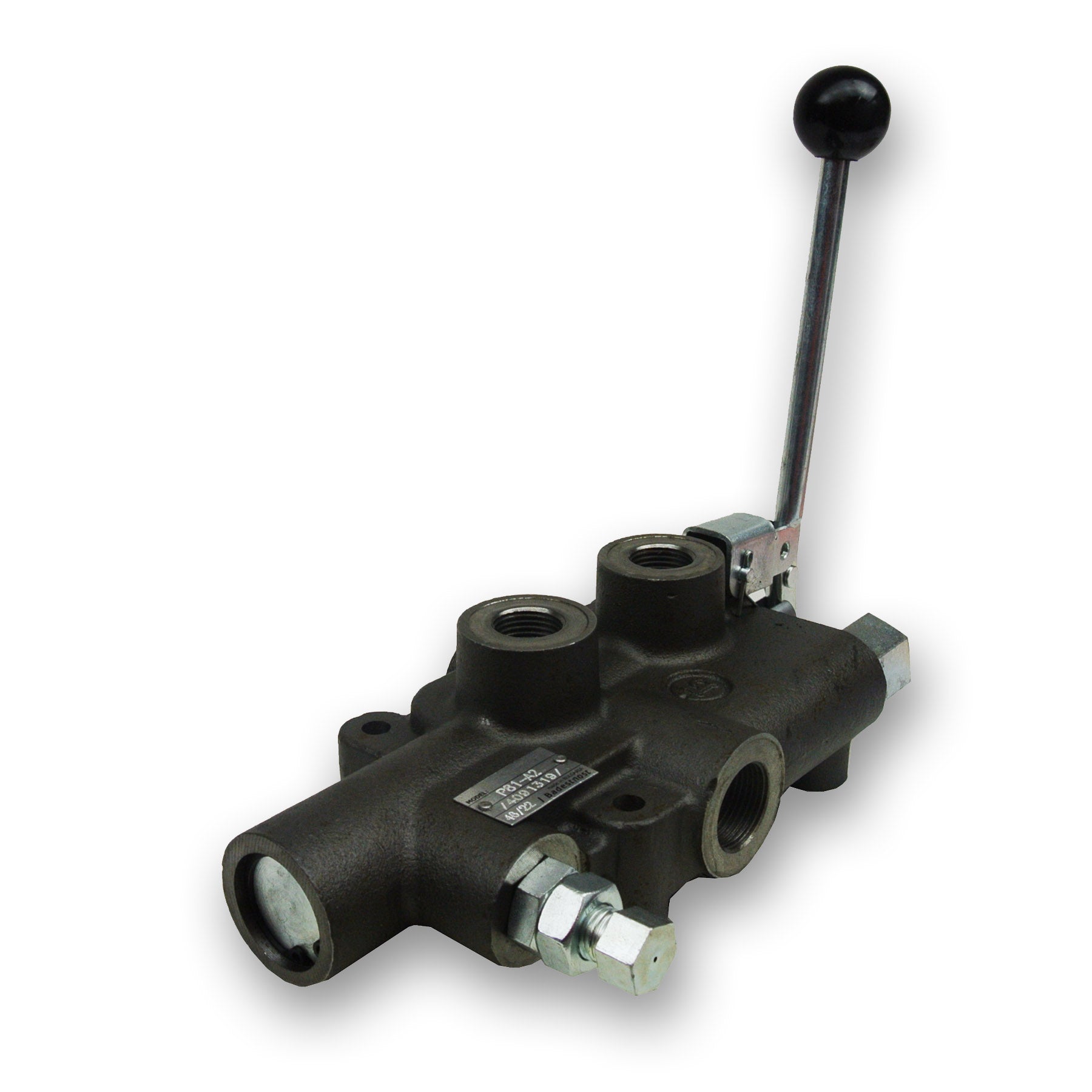

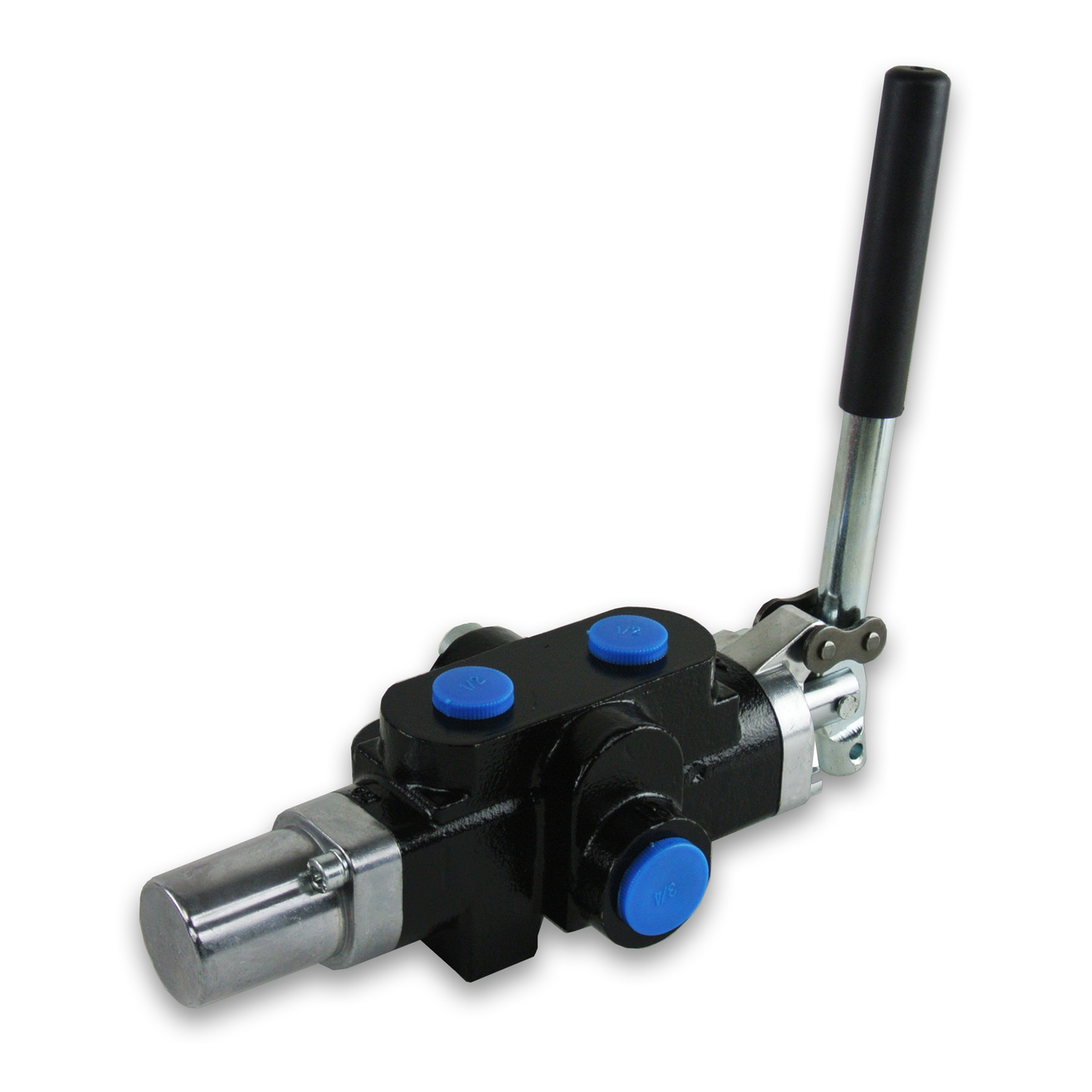

Log Splitter Control Valve 80LPM – Spring Center / Hydraulic Kick-Off

This high-quality log splitter control valve, manufactured by Badestnost in Europe, is engineered for efficient and reliable performance. With a flow rate of 80 LPM (18 GPM), it is ideal for use with log splitters and features spring-to-center and hydraulic kick-off functionality for seamless operation.

Key Features:

• Spring-to-Center / Hydraulic Kick-Off:

• Hold the lever to extend the ram for splitting.

• Push the lever fully back, and it will detent and stay engaged as the ram retracts.

• Automatically stops at the end of the retraction cycle, ready for the next operation.

• Enables hands-free operation during the return stroke for added efficiency.

• Adjustable Relief Valve:

• Factory set to 2250 PSI (adjustable up to 3500 PSI).

• Kick-off pressure preset to 800 PSI (non-adjustable).

• Durable Construction:

• Made from case-hardened steel with NBR (Buna-N®) O-rings for enhanced durability.

• Compact monoblock design for easy integration.

• Compatibility:

• Designed for use with high-low two-stage pumps.

• Port Connections:

• Pressure and Tank Ports: 3/4" BSP

• A & B Ports: 1/2" BSP

Specifications:

• Max Flow Rate: 80 LPM (18 GPM)

• Max Working Pressure: 3265 PSI

• Spool Type: Cylinder with lever action

• Temperature Range: -20°C to +80°C

• Dimensions: 200 x 120 x 55 mm

• Weight: 4.5 kg

• Handle Adjustment: 180° rotation for flexible installation

Recommended Connections:

• B Port: Connect to the rod end of the cylinder.

• A Port: Connect to the base end of the ram.

This control valve is the perfect choice for anyone looking to enhance the efficiency and usability of their log splitter. Its robust build and smart features ensure reliable performance and ease of use.
